Getting started with the MVC project template

This tutorial explains how to create a BlackSheep application using the MVC (Model, View, Controller) project template, covering the following topics:

  • Creating an application from a project template, using the BlackSheep CLI.
  • Routes defined using classes (controllers).
  • Server side templating (views and models).
  • Handling parameters in controllers.
  • Serving static files

It is recommended to follow the previous tutorial before reading this one.

Requirements

  • Python version >= 3.10 (3.8 and 3.9 are supported but not recommended to follow this tutorial)
  • path to the python executable configured in the environment $PATH variable (tip: if you install Python on Windows using the official installer, enable the checkbox to update your $PATH variable automatically)
  • a text editor: any is fine; this tutorial uses Visual Studio Code

Introduction to the BlackSheep CLI

The previous tutorial described the basics of creating an application from scratch. While that knowledge is important, it is usually not desirable to start every project from scratch. BlackSheep offers a command-line interface (CLI) that can be used to start new projects. The CLI can be installed from the Python Package Index using the blacksheep-cli package:

pip install blacksheep-cli

Once installed, the create command can be used to start new projects:

blacksheep create

The CLI will prompt for input about various options. For the sake of this tutorial, answer:

  • tutorial for project name
  • mvc for the project template
  • Yes for OpenAPI Documentation
  • essentials-configuration to read settings
  • YAML for app settings format
✨ Project name: tutorial
πŸš€ Project template: mvc
πŸ“œ Use OpenAPI Documentation? Yes
πŸ”§ Library to read settings essentials-configuration
πŸ”© App settings format (Use arrow keys)
 Β» YAML
   TOML
   JSON
   INI

blacksheep create

It is possible to use the create command specifying the project name and template directly, like in:

  • blacksheep create some_name
  • blacksheep create some_name --template api

MVC template

After a project is created, the CLI displays a message with instructions.

──────────────────────────────────────────────────────────────────────
πŸ—οΈ  Project created in tutorial
──────────────────────────────────────────────────────────────────────
-- What's next:
        cd tutorial
        pip install -r requirements.txt
        python dev.py

Install the project dependencies:

  • cd into the project folder
  • create a new Python virtual environment (recommended but optional)
  • install its dependencies with pip install -r requirements.txt

Starting the application

Start the application using one of the following commands:

# using the provided dev.py file (useful to debug)
python dev.py

# or using the uvicorn CLI
uvicorn app.main:app --port 44777 --lifespan on --reload

And navigate to the local page, opening a browser at http://localhost:44777 (use the same port of the previous command).

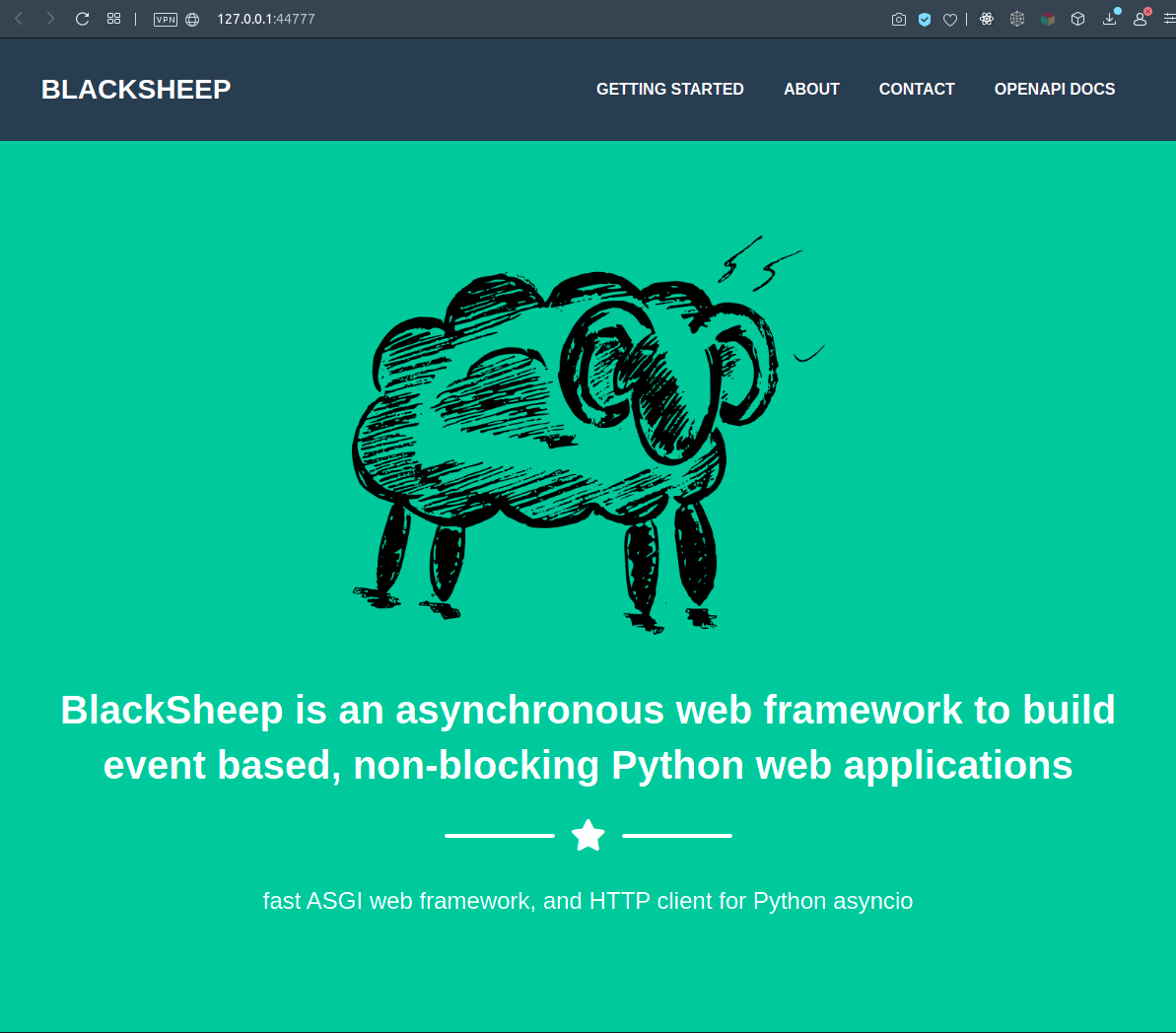

The browser should display this page:

MVC Project home

Several things are happening because the web application is configured:

  • to build and serve dynamic HTML pages
  • to serve static files (e.g. pictures, JavaScript, CSS files)
  • to expose an API and offer OpenAPI Documentation about the API
  • to handle application settings and application start/stop events

Let's see these elements in order, but first let's get acquainted with the project's structure.

Project structure

The project is organized with the following folder structure:

β”œβ”€β”€ app
β”‚Β Β  β”œβ”€β”€ (application files)
β”‚Β Β  β”‚
β”‚Β Β  β”œβ”€β”€ controllers
β”‚Β Β  β”‚Β Β  └── (controller files, defining routes)
β”‚Β Β  β”‚
β”‚Β Β  β”œβ”€β”€ docs
β”‚Β Β  β”‚Β Β  └── (files for OpenAPI Documentation)
β”‚Β Β  β”‚
β”‚Β Β  β”œβ”€β”€ static
β”‚Β Β  β”‚Β Β  └── (static files served by the web app)
β”‚Β Β  β”‚
β”‚Β Β  └── views
β”‚Β Β      └── (HTML templates, views compiled by the web app)
β”‚
β”œβ”€β”€ domain
β”‚Β Β  └── (domain classes, POCO)
β”‚
β”œβ”€β”€ (root folder, where the main file starting the whole app resides)
β”œβ”€β”€ dev.py  (file that can be used to start a development server, useful for debugging)
└── settings.dev.yaml (settings used when the env variable APP_ENV == dev)
└── settings.yaml (base settings file)
  • the app folder contains files that are specific to the web application, settings, a folder for controllers that define routes, folders for static files and one for views (HTML templates)
  • other packages at the root of the project, like domain, should be abstracted from the web server and should be reusable in other kinds of applications (for example, a CLI)
  • the root folder contains the dev.py file to start the application in development mode, and settings files with .yaml extension that are read when the application starts (since the YAML format was selected when using the blacksheep create command)

The project uses onion architecture. For example, a valid scenario would be to add an additional package for the data access layer, and implement the business logic in modules inside the domain folder.

Open the project with a text editor

Open the project's folder using your favorite text editor.

Visual Studio Code

Routes defined using classes (controllers)

The previous tutorial described how routes can be defined using functions:

@get("/")
async def home():
    ...

blacksheep offers an alternative way to define request handlers: using class methods. Both approaches have pros and cons, which will be described later in more detail. To see this in practice, create a new file app/controllers/greetings.py and copy the following code into it:

from blacksheep.server.controllers import Controller, get


class Greetings(Controller):

    @get("/hello-world")
    def index(self):
        return self.text("Hello, World!")

Stop and restart the application, then navigate to http://localhost:44777/hello-world: it will display the response from the Greetings.index method.

When the path of a web request matches a route defined in a controller type, a new instance of that Controller is created. In other words, every instance of controller is scoped to a specific web request. Just like function handlers, controllers support the automatic injection of parameters into request handlers, and also dependency injection into their constructors (__init__ methods). This is a feature that improves development speed and enables cleaner code (compare this approach with a scenario where all dependencies need to be imported and referenced inside function bodies by hand).

The Controller class implements methods to return values and offers on_request and on_response extensibility points.

Controllers and routes automatic import

Python modules defined inside controllers and routes packages are automatically imported by a BlackSheep application. The automatic import happens relative to the namespace where the application is instantiated.

Server side templating (views and models)

Server side templating refers to the ability of a web application to generate HTML pages from templates and dynamic variables. By default, BlackSheep does this using the Jinja2 library by the Pallets team.

To see how this works in practice when using Controllers, edit the Greetings controller created previously to look like this:

from blacksheep.server.controllers import Controller, get


class Greetings(Controller):

    @get("/hello-view")
    def hello(self):
        return self.view()

Then, create a new folder inside views directory, called "greetings", and add an HTML file named "hello.jinja".

New view

Copy the following contents into hello.jinja:

<div>
  <h1>Hello, There</h1>
</div>

Now navigate to http://localhost:44777/hello-view, to see the response from the new HTML view.

Note how convention over configuration is used in this case, to determine that ./views/greetings/hello.jinja file must be used, because of the convention:
./views/{CONTROLLER_NAME}/{METHOD_NAME}.jinja.

The view currently is an HTML fragment, not a full document. To make it a full page, modify hello.jinja to use the application layout:

{%- extends "layout.jinja" -%}
{%- block title -%}
  Hello Page!
{%- endblock -%}
{%- block description -%}
  Project template to create web applications with MVC architecture using BlackSheep web framework.
{%- endblock -%}
{%- block css -%}
  <link rel="stylesheet" href="/styles/public.css" />
{%- endblock -%}
{%- block body -%}
  <div style="margin: 10em 2em;">
    <h1>Hello, There!</h1>
  </div>
{%- endblock -%}
{%- block js -%}

{%- endblock -%}

Refresh the page at http://localhost:44777/hello-view to see the result.

In this case, a page layout is applied using: {%- extends "layout.jinja" -%}, with several blocks going in various areas of layout.jinja. For more information on layouts and features of the templating library, refer to the Jinja2 documentation.


So far the tutorials only showed the Controller and the View part of the MVC architecture. A Model is a context for an HTML view. To include dynamic content into an HTML template, use mustaches {{name}} placeholders and pass a model having properties whose names match their key to the view function.

For example, modify hello.jinja to use dynamic content from a model:

  <div style="margin: 10em 2em;">
    <h1>Hello, {{name}}!</h1>

    <ul>
      {% for sentence in sentences %}
        <li><a href="{{ sentence.url }}">{{ sentence.text }}</a></li>
      {% endfor %}
    </ul>
  </div>

and greetings.py to contain the following code:

from dataclasses import dataclass
from typing import List
from blacksheep.server.controllers import Controller, get


@dataclass
class Sentence:
    text: str
    url: str


@dataclass
class HelloModel:
    name: str
    sentences: List[Sentence]


class Greetings(Controller):

    @get("/hello-view")
    def hello(self):
        return self.view(
            model=HelloModel(
                "World!",
                sentences=[
                    Sentence(
                        "Check this out!",
                        "https://github.com/RobertoPrevato/BlackSheep",
                    )
                ],
            )
        )

Produces this result: Hello Model

Models can be defined as dictionaries, dataclasses, pydantic models, or regular classes implementing a constructor.

Handling parameters in controllers

The previous tutorial showed how request handlers support the automatic injection of parameters read from the HTTP request. Controllers support the same, therefore it is possible to have parameters read automatically and injected into controller methods:

class Example(Controller):

    @get("/example/{value}")
    def route_example(self, value: str):
        return self.text(f"Got: {value} in route")

    @get("/example")
    def query_example(self, value: str):
        return self.text(f"Got: {value} in query string")

Controllers also support dependency injection for their constructor (__init__ method), this will be explained in the next page.

Serving static files

This tutorial previously showed how the homepage of the MVC project template looks like, at the root of the website:

MVC Project home

The project template includes a folder for static files, including pictures, CSS, and JavaScript files. Static files are served using a catch-all route, reading files whose path, relative to the static folder, matches the URL path of the request.

For example, if the static folder contains the file scripts/example.js, web requests at http://localhost:44777/scripts/example.js will be resolved with this file and related information. When handling static files, BlackSheep automatically takes care of several details:

  • it handles the ETag response header, If-None-Match request header and HTTP 304 Not Modified responses if files don't change on the file system
  • it handles HTTP GET requests returning file information
  • it handles Range requests, to support pause and restore downloads out of the box and enable optimal support for videos (videos can be downloaded from a certain point in time)

Try to add a file to the static folder, and download it writing the path in your browser.

Relative paths are supported, but only files inside the root static folder are served, it is not possible to download files outside of the static folder (it would be a security issue if it worked otherwise!). Additionally, BlackSheep only handles certain file extensions: by default only the most common file extensions used in web applications. Paths starting with "/" are always considered absolute paths starting from the root of the website.

Strategy for application settings

The API and the MVC project templates include a strategy to read and validate application settings, from various sources, and support multiple system environments (like dev, test, and prod environments).

  • Pydantic is always used to describe and validate application settings.
  • Application settings can be read from various sources using either Pydantic v1 BaseSettings class, or essentials-configuration.
  • When using essentials-configuration, use the APP_ENV environment variable to control the application environment and to use environment-specific settings from dedicated files using the pattern: settings.{{env_name}}.{{format}}, like settings.test.yaml, settings.prod.toml.

For more information on application settings and the recommended way to apply configuration depending on the application environment, refer to Settings.

Summary

This tutorial covered some higher-level topics of a BlackSheep application. The general concepts presented here apply to many kinds of web frameworks:

  • server side templating of HTML views
  • serving of static files
  • use of MVC architecture

The next pages describe the built-in support for dependency injection, and automatic generation of OpenAPI Documentation.

For more information...

For more information about Server Side Rendering, read Templating.
For more information about the BlackSheep CLI, read More about the CLI.

Don't miss the api project template

Try also the api project template, to start new Web API projects that don't handle HTML views.
